Custom Wear Bushings for Heavy Equipment & Industrial Machinery

Replacement wear bushings made to your drawings, samples, or specifications — including low-volume and hard-to-source parts. When standard wear bushings can't supply, we make the replacement.

Wear-resistant bushings are replaceable wear parts designed to protect mating components in moving connections. Their function is to withstand repeated contact, sliding, or reciprocating motion, as well as surface wear that would otherwise damage pins, shafts, or housings. In heavy-duty equipment and industrial machinery, under continuous operating loads and motion, these wear bushings gradually develop issues such as bore enlargement, scoring, surface damage, and excessive clearance. Once a wear bushing reaches the end of its service life, replacing it restores the proper working fit and helps prevent unnecessary wear on mating components. DREJEX supplies replacement wear-resistant bushings for applications where original parts are worn out, out of stock, or difficult to source. We can produce bushings based on your drawings, samples, or measured dimensions, including small-batch orders and custom replacement parts.

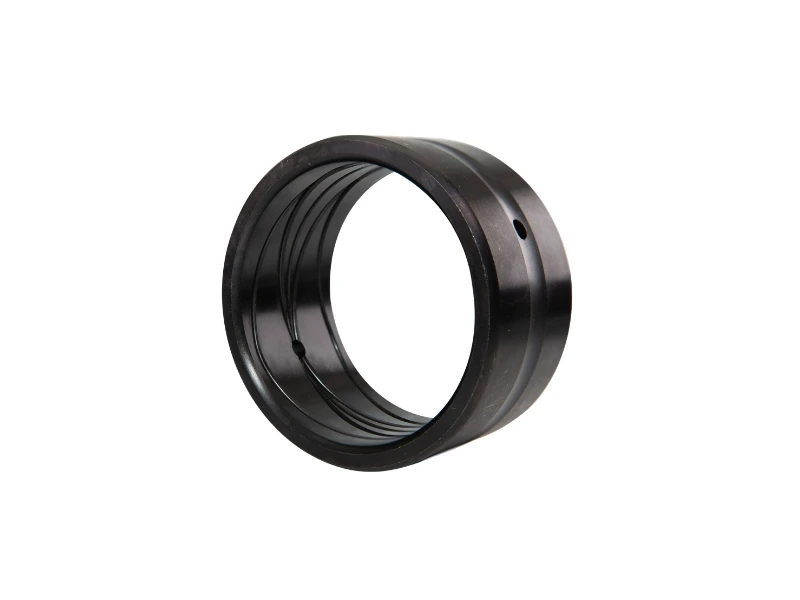

DREJEX Straight pin wear bushing, hardened alloy steel for excavator heavy‑duty MRO replacement

Custom Straight Wear Bushings

Straight wear bushings feature a uniform cylindrical profile along their length. This simple design is suitable for applications in which the bushing is installed in a uniform cylindrical housing and provides a replaceable, wear-resistant surface between mating components.

We manufacture straight wear bushings in a variety of outer diameters, inner diameters, lengths, materials, and hardness specifications to meet specific application requirements.

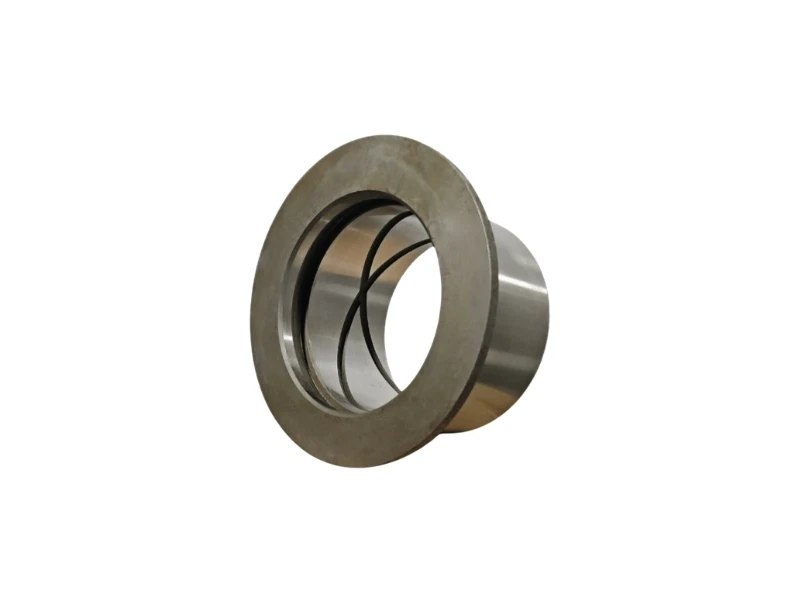

DREJEX Flanged pin wear bushing with spiral grease grooves, heavy‑duty construction machinery replacement bushing

Custom Flanged Wear Bushings

Flanged wear bushings feature an extended flange at one end of the cylindrical body. The flange provides a locating surface and helps control axial movement within the assembly.

Flanged wear bushings are commonly used in applications where the bushing needs to be positioned against a shoulder or requires controlled axial positioning. The flange diameter, thickness, bore diameter, and overall length can all be customized to meet your specifications.

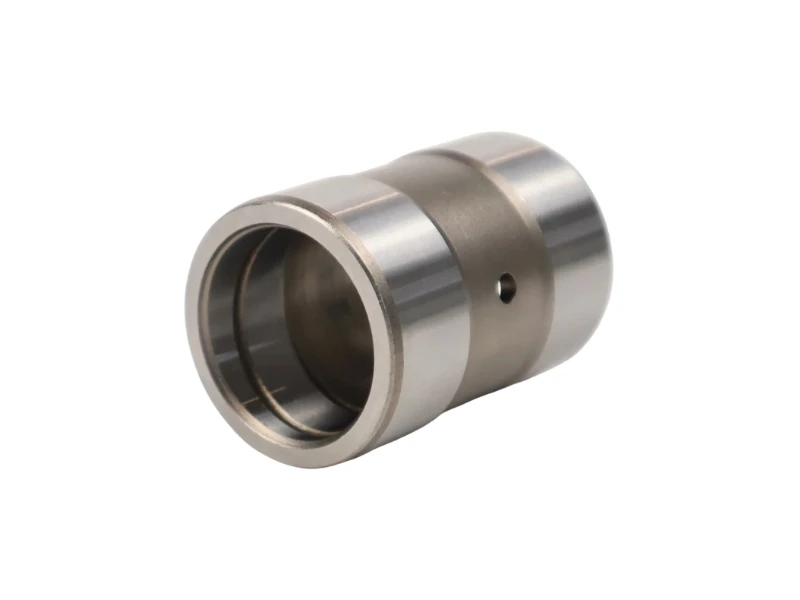

DREJEX Stepped pin wear bushing with grease hole, hardened SAE 5140 alloy steel for excavator MRO

Custom Stepped Wear Bushings

Stepped wear bushings feature two or more different outer or inner diameters within a single bushing. This design allows the bushing to accommodate different diameter requirements or specific locating features within the assembly..

DREJEX produces stepped wear bushings with controlled transitions between sections, including custom dimensions for replacement and repair applications.
